NSP / Airwing
Download Airwing Manual Here: AIRWING
This very accessible, lightweight wing is the ideal accessory for foilers, SUPers and surfers wanting to increase their time and skills on the water. The geometry of the NSP Airwing delivers smooth power, stability and flowing handling. It invites you to experience new watersport sensations. Learn more about the NSP foiling system from the Airwave Matrix Comparison chart.
Wider wind range and control
The NSP Airwing is the result of tons of prototypes and hundreds of testing hours. The NSP R&D process refined the outlines, tube geometries and foil profiles to deliver a ride that is smooth and stable. The wing features a stable, low-aspect shape, balanced with moderate dihedral angles. This increases performance and your wind range, plus it helps keep the wingtips clear of the water.Light but durable too
With weight being an essential performance parameter, we aimed for the lowest weight possible, without compromising strength and durability:
3M weight 2.0 KG
4M weight 2.3 KG
5M weight 2.7 KG
6M weight 3.1 KG
The strut and leading-edge tips are reinforced with light and durable PVC wear patches, while the tips on the NSP Airwing are protected by longer wear strips and reinforced TPU wear pads on the corners. The wing will perform on water, land and snow but we advise against excessive dragging over surfaces.
– A refined shape design for balanced power and efficiency
– Leading-edge profile and dihedral shape deliver efficient twist dynamics
– Oversized and segmented leading-edge for rigidity (10 segments on the 5m² and 8 on the 4m² and 3m²)

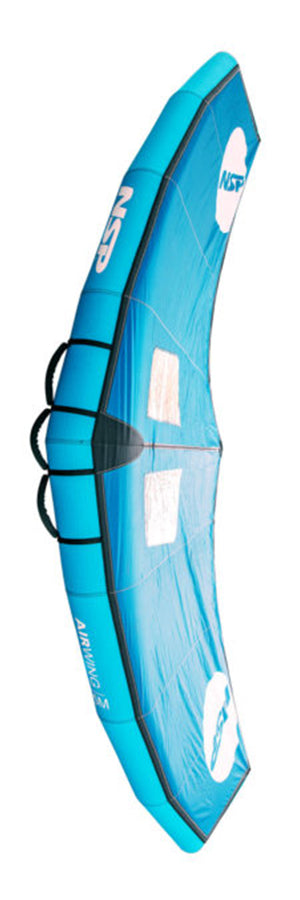

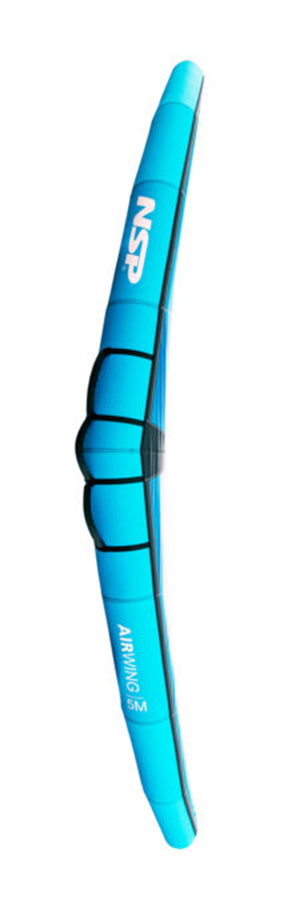

Notice the subtle dihedral design, helping to create a stable wing, even in overpowered conditions.
By strategically placing an additional foiled strip of rip-stop material between the strut and the wing canopy, the Airwing boasts a smooth preset profile that powers up early and maintains shape under all circumstances.
Get going immediately
Out of the bag, the NSP Airwing is ready for action. First, secure the supplied leash to the leading edge. Use the low-profile valve to inflate your Airwing to 7psi and get out on the water. With some short quick movements, your setup will develop lift.
Sufficiently powered up, an Airwing can be held by the leading edge in one hand as it floats behind you. This way, you get to concentrate on your surfing or hydrofoiling until you need to power up again.
Benefit from controllable lift. Excess energy is released from the trailing edge of the upper wing.
Notice the Airwing rising to a horizontal angle above your head, feeling neutral and controllable.
WHO’S IT FOR
Match the Airwing with an NSP SUP foil or NSP Airwave and start covering serious distances.
|Surface||Wing span||Chord||Strut Handles||Colours|
|3m²||TBA||TBA||4||Light blue or red|
|4m²||307 cm||160 cm||4||Light blue or red|
|5m²||345 cm||180 cm||5||Light blue or red|
|6m²||TBA||TBA||5||Light blue or red|
